Summit Pump, Inc has manufactured quality pumps and pump parts for industry world wide. They “provide quality pumping products in a timely manner, at a fair market price”

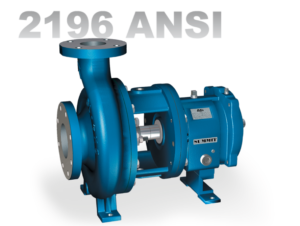

2196 ANSI

  • ANSI B73.1 Process Pump
  • Rear Pull Out Design
  • External Axial Impeller Adjustment
  • Maximum Interchangeability
  • Heavy Duty Shaft & Bearings
  • Rigid Frame Foot
  • Open Impeller
  • Extra Large Oil Sump
  • Capacities to 6,000 GPM
  • Heads to 730 Feet
  • Temperatures to 700°F

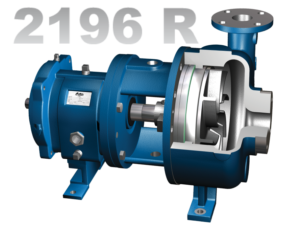

2196R

  • Recessed Impeller Pump
  • Interchangeable with existing ANSI pumps
  • Handles fibrous and shear sensitive materials
  • Minimizes degradation of solids
  • Available in 7 different sizes and a variety of materials
  • Capacities to 1,750 GPM
  • Heads to 275 Feet

2196LF ANSI

  • Low Flow/High Head Pump
  • Radial Vane Impeller with Balance Holes
  • Interchangeable with Existing ANSI Pumps
  • Circular Non-expanding Case
  • Reduced Shaft Vibration
  • Lower NPSHr
  • Lower Seal Chamber pressure
  • Extended MTBF on the Pump and Mechanical Seal
  • Capacities to 215 GPM
  • Heads to 900 Feet

2796

  • Self-Priming Process Pump
  • Rear Pull-Out Design
  • External Axial
  • Impeller Adjustment
  • Open Impeller
  • Capacities to 1,250 GPM
  • Heads to 400 Feet

2175

  • Stock/Process Pump
  • Rear Pull-Out Design
  • Efficient Parts Interchangeability
  • Sacrificial Wear Items
  • Double Wall Volute on Larger Sizes
  • Capacities to 7,800 GPM
  • Heads to 350 Feet

Clark 3 ANSI

  • ANSI B73.1 Process Pump
  • Reverse Vane and Open Impellers
  • Rear Pull Out Design
  • Indexed Bearing Carrier for Axial Impeller Adjustment
  • Maximum Interchangeability
  • Heavy Duty Shaft and Bearings
  • Capacities to 6,800 GPM
  • Heads to 750 Feet
  • Temperatures to 700°F

CC & FM

  • General Service End Suction Pump
  • Close Coupled (CC) or Frame Mounted (FM)
  • Cast Iron/Bronze Fitted Standard
  • 316SS Wetted Parts Optional
  • Type 1 Mechanical Seal
  • Capacities to 1,500 GPM
  • Heads to 200 Feet

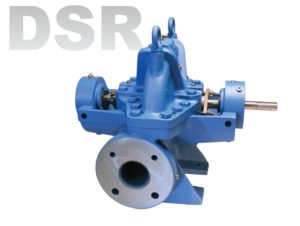

DSR

  • Horizontal Split Case Pump
  • Single Stage
  • High Efficiency And Low NPSHr
  • Closed Impeller
  • Packed Box Standard
  • Stainless Wetted Parts Optional
  • Capacities to 12,000 GPM

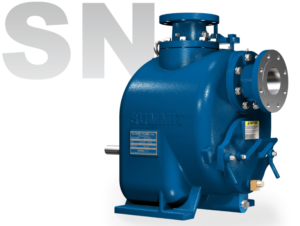

SN

  • Self-Priming
  • Non-clogging Pump
  • Cast Iron Standard
  • Stainless Wetted Parts Optional
  • Mechanical Seal Standard
  • 2″ Through 10″ Sizes Available
  • Capacities to 3,400 GPM
  • Heads to 145 Feet

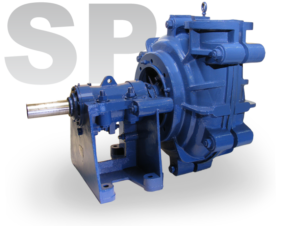

SP Slurry

  • Metal or Rubber Lined
  • Heavy Duty Horizontal Slurry Pump
  • Designed to Pump Highly Abrasive, High Density Slurries
  • Capacities to 4,000 GPM
  • Heads to 240 Feet

VV40

  • Positive Displacement Compact Pump
  • Mutliple Material options
  • End Clearance Adjustment for a Variety of Fluids
  • Easy Assembly an Disassembly for Short Downtime
  • Maximum Interchangeability
  • Multiple Models to choose from
  • Capacities to 500 GPM
  • Pressures to 250 PSI

SPPC Gear Joint

  • Models feature either an Open Pin Design for ease of maintenance and low cost or a Sealed Gear Joint to handle high thrust and radial loads in the toughest applications
  • Capacities to 1000 GPM
  • Pressures to 540 PSI
