End Suction Pump

Series e-1510 Base Mounted End Suction Pump

FEATURES & BENEFITS

  • True Back Pullout
  • Internally Self-Flushing Mechanical Seal
  • Computer Controlled Impeller Balancing
  • Heavy Duty, Rugged Baseplate
  • Solid-Foot Mounted Volute
  • Center Drop-Out Spacer Coupling
  • ANSI/OSHA-Compliant Coupling Guard

Double Suction Pump

Features and Benefits

  • Hydraulic coverage to meet all your design requirements
  • Volute & Cover Plates: Cast iron ASTM A159 (35,000 psi)*
  • Impeller: Low Zinc Silicon Bronze ASTM 876
  • Sleeve: 304 Stainless Steel

In-Line Pump

Features and Benefits

  • Class-leading hydraulic efficiency
  • Upgraded unitized mechanical seal
  • Permanently lubricated pump and motor bearings—no regreasing!
  • Space saving in-line mounting
  • Dimensionally interchangeable with legacy Series 60
  • Bronze-Fitted or all Bronze
  • 1” to 3” pipe sizes
  • 0.25 – 3 HP motors at 1750 RPM

Features and Benefits:

  • Class-leading hydraulic efficiency
  • Building Automation System control via 10VDC signal
  • Upgraded EPR/Carbon/SiC unitized mechanical seal
  • Permanently lubricated pump and motor bearings—no regreasing!
  • Space saving in-line mounting
  • Bronze-Fitted or all Bronze
  • 1” to 3” pipe sizes
  • 0.5 or 1 HP ECM motors

Features:

  • Higher hydraulic and energy efficiency
  • Exceeds proposed DOE efficiency regulations
  • Maximized hydraulic coverage
  • Stainless steel impeller for performance and durability
  • Available with Integrated Technologic drives for sensored and sensorless applications

Features & Benefits

  • Long life and robust performance
  • Robust EPR/carbon/silicon-carbide mechanical seal
  • Energy savings
  • Increased hydraulic efficiency
  • Space savings and installation flexibility close-coupled
  • Ability to mount horizontally and vertically
  • Ease of maintenance
  • 56J motor
  • Excellent for boiler recirculation applications
  • Optional 50°C ambient temperature performance

Circulator Pump

Three Piece Booster Pump

For applications requiring higher flow and head pressures, Bell & Gossett provides an entire range of booster pumps. The designs of these pumps are based on three-part configuration which offers complete field repairability and compact construction. All Bell & Gossett boosters are equipped with the incomparable B&G manufactured motor for quiet and efficient operation.

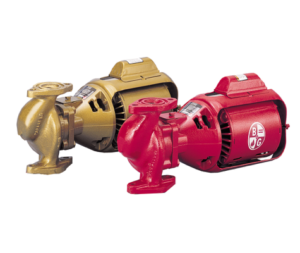

Series 100 Inline Booster Pump

Series 100′s three-piece, oil lubricated design provides for easy field service with bearings, shaft and seal all housed in an assembly which can be easily repaired or replaced. The Series 100 oil lubricated motor is specifically designed for the Series 100, and its resilient mounting provides quiet, dependable service with minimum annual lubrication. UL and CSA listings are standard.The design of this motor, coupled with its overall hydraulic performance, allows the Series 100 to overcome system related noise caused by valves, fittings, or piping.

NRF Wet Rotor Pump

Features and Benefits

  • High starting torque for dependable seasonal start-ups (Up to 80% more than competing circulators)
  • Unique B&G DuraGlide Bearing System assures years of trouble-free start-ups
  • Closed impeller design improves operating efficiency
  • Backed by B&G’s representatives and a 3-year warranty–the best in the business
  • DuraGlide Bearing System incorporates several components working together to eliminate seasonal freeze-up
  • Stabilized, heat resistant, polypropylene impeller, its closed design improves operating efficiency
  • Self-cleaning particle shield protects the shaft and bearings from system start-up debris
  • One-piece, high-nickel stainless steel stator can isolates the stator from system fluid and maintains precision bearing alignment for longer bearing life
  • Carbon bearings, diamond-like ceramic shaft and generous clearances are more resistant to lime, chloride and oxide build-up
  • Face plate and rotor sleeve feature corrosion resistant stainless steel construction for longer life
